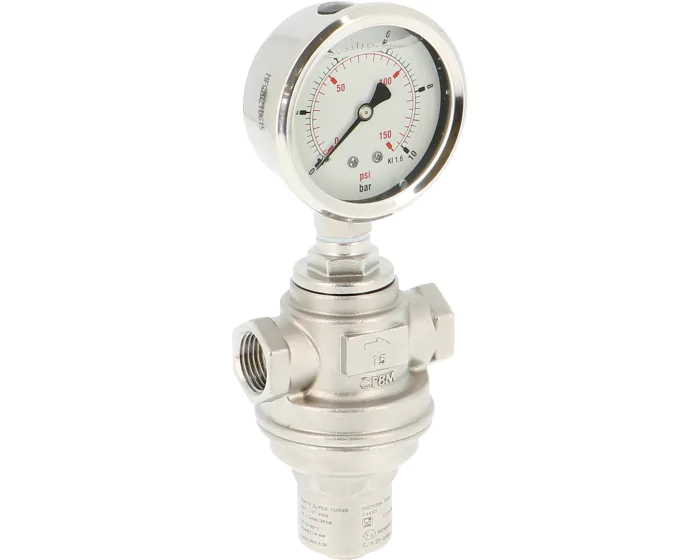

Stainless steel pressure reducing valve 2440 PRV-W ACS 1/2'' 1-6 bar
€378.91
(excl. btw)
The ELITE pressure reducing valve type PRV-W made of ACS stainless steel is designed for the pressure reducing function of fluids such as drinking water. EPDM tightness. PS : 16 bar. TS: -15°C / +80°C. G threaded fittings. ATEX.
Specification
Value
Option certificate 3.1
Yes
ATEX compatible
No
DN
DN15 - 1/2''
Face to Face (mm)
285.0
Sealing
EPDM
Gasket
EPDM
Kv (m³/h)
2.10
Body material
Stainless steel CF8M (1.4408)
Downstream pressure range (bar)
1 / 6
PS (bar)
16
Connections
BSP FF
TS max (°C)
80
TS min (°C)
-15
Warranty period
1 year
CE
Excluded (Article 4. §3)
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
12273
BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2''
244101
S1011962
€378.91
(excl. btw)
add to cart
12274
BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4''
244111
S1011963
€388.06
(excl. btw)
add to cart
12275
BSP FF Stainless steel CF8M (1.4408) DN25 - 1''
244121
S1011964
€452.63
(excl. btw)
add to cart
